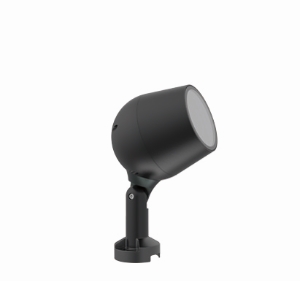

Focus-S

DESCRIPTION

High pressure die casting aluminum

Silicone gasket

Polyester powder coating, any colour available

High efficient integrated heat radiation design



MAIN CHARACTERISTICS LUMINARIE

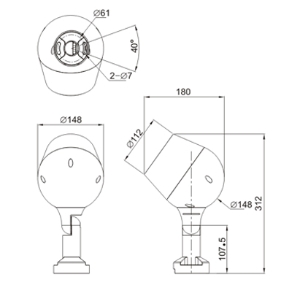

Size:                             312×180×148mm

Power:                          9W-30W

Finishing:                     Standard color,other colors upon request

Impact Resistance:      IK08

Electrical Class:          Class II

Input Voltage:             90-305V

Power Factor:             ≥0.95

Protection Class:        IP67




●  The overall structural parts are made of die-cast aluminum alloy, which has high strength, safety and reliability. The transparent cover adopts high light transmittance toughened glass
●  Light source modular design, chips quantity from 18 to 36, using OSRAM chips, single and RGBW program options, accorrding to customer requirements for a high degree of customization.
●  The light angle is from 5 degrees to 60 degrees, with a hood design, glare control design
●  The entire lamp power is up to 100W, and the aluminum alloy radiator with high thermal conductivity is built in.


very narrow beam
CodePowerSize(H×W×L)Luminous FluxPFCCTCRIBeam AngleInputService Life
FS-004-P099W312×180×148mm711 lm≥0.95Single/RGBW≥703.5°-15°AC/DC≥70000H
FS-009-P2420W312×180×148mm1580 lm≥0.95Single/RGBW≥705°-15°AC/DC≥70000H
FS-012-P3030W312×180×148mm2350 lm≥0.95Single/RGBW≥705°-15°AC/DC≥70000H


narrow beam
CodePowerSize(H×W×L)Luminous FluxPFCCTCRIBeam AngleInputService Life
FS-004-P099W312×180×148mm639 lm≥0.95Single/RGBW≥7025°-45°AC/DC≥70000H
FS-009-P2420W312×180×148mm1420 lm≥0.95Single/RGBW≥7025°-45°AC/DC≥70000H
FS-012-P3030W312×180×148mm2120 lm≥0.95Single/RGBW≥7025°-45°AC/DC≥70000H


wide beam
CodePowerSize(H×W×L)Luminous FluxPFCCTCRIBeam AngleInputService Life
FS-004-P099W312×180×148mm567 lm≥0.95Single/RGBW≥7050°-60°AC/DC≥70000H
FS-009-P2420W312×180×148mm1260lm≥0.95Single/RGBW≥7050°-60°AC/DC≥70000H
FS-012-P3030W312×180×148mm1880 lm≥0.95Single/RGBW≥7050°-60°AC/DC≥70000H


BEAM ANGLE
