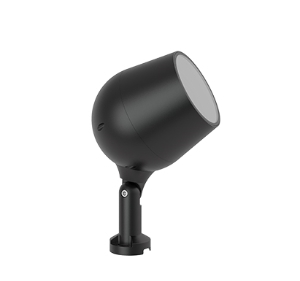

Focus-M

DESCRIPTION

High pressure die casting aluminum

Silicone gasket

Polyester powder coating, any colour available

High efficient integrated heat radiation design



MAIN CHARACTERISTICS LUMINARIE

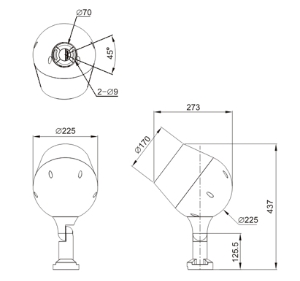

Size:                             437×273×225mm

Power:                          30W-60W

Finishing:                     Standard color,other colors upon request

Impact Resistance:      IK08

Electrical Class:          Class II

Input Voltage:             90-305V

Power Factor:             ≥0.95

Protection Class:        IP67


●  The overall structural parts are made of die-cast aluminum alloy, which has high strength, safety and reliability. The transparent cover adopts high light transmittance toughened glass
●  Light source modular design, chips quantity from 18 to 36, using OSRAM chips, single and RGBW program options, accorrding to customer requirements for a high degree of customization.
●  The light angle is from 5 degrees to 60 degrees, with a hood design, glare control design
●  The entire lamp power is up to 100W, and the aluminum alloy radiator with high thermal conductivity is built in.


very narrow beam
CodePowerSize(H×W×L)Luminous FluxPFCCTCRIBeam AngleInputService Life
FM-012-P3030W437×273×225mm2370 lm≥0.95Single/RGBW≥703.5°-15°AC/DC≥70000H
FM-018-P4040W437×273×225mm3160 lm≥0.95Single/RGBW≥705°-15°AC/DC≥70000H
FM-024-P6060W437×273×225mm4740 lm≥0.95Single/RGBW≥705°-15°AC/DC≥70000H


narrow beam
CodePowerSize(H×W×L)Luminous FluxPFCCTCRIBeam AngleInputService Life
FM-012-P3030W437×273×225mm2130 lm≥0.95Single/RGBW≥7025°-45°AC/DC≥70000H
FM-018-P4040W437×273×225mm2840 lm≥0.95Single/RGBW≥7025°-45°AC/DC≥70000H
FM-024-P6060W437×273×225mm4260 lm≥0.95Single/RGBW≥7025°-45°AC/DC≥70000H


wide beam
CodePowerSize(H×W×L)Luminous FluxPFCCTCRIBeam AngleInputService Life
FM-012-P3030W437×273×225mm1890 lm≥0.95Single/RGBW≥7050°-60°AC/DC≥70000H
FM-018-P4040W437×273×225mm2520 lm≥0.95Single/RGBW≥7050°-60°AC/DC≥70000H
FM-024-P6060W437×273×225mm3780 lm≥0.95Single/RGBW≥7050°-60°AC/DC≥70000H


BEAM ANGLE
