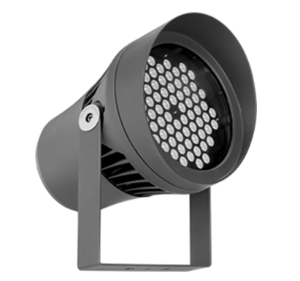

Alpha

DESCRIPTION

High pressure die casting aluminum

Silicone gasket

Polyester powder coating, any colour available

High efficient integrated heat radiation design



MAIN CHARACTERISTICS LUMINARIE

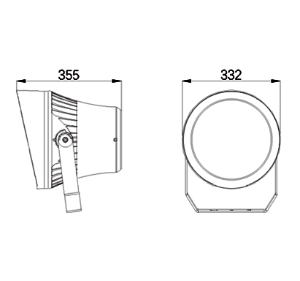

Size:                             355×332×332mm

Power:                          120W-200W

Finishing:                     Standard color,other colors upon request

Impact Resistance:      IK08

Electrical Class:          Class II

Input Voltage:             90-305V

Power Factor:             ≥0.95

Protection Class:        IP67




●  The overall structural parts are made of die-cast aluminum alloy, which has high strength, safety and reliability. The transparent cover adopts high light transmittance toughened glass
●  Light source modular design, chips quantity from 36 to 72, using OSRAM chips, single and RGBW program options, accorrding to customer requirements for a high degree of customization.
●  The light angle is from 5 degrees to 60 degrees, with a hood design, glare control design
●  The entire lamp power is up to 200W, and the aluminum alloy radiator with high thermal conductivity is built in.


very narrow beam
CodePowerSize(H×W×L)Luminous FluxPFCCTCRIBeam AngleInputService Life
AL-054-P120120W 355×332×332mm9480lm≥0.95Single/RGBW≥705°-15°AC/DC≥70000H
AL-072-P150150W 355×332×332mm11850 lm≥0.95Single/RGBW≥705°-15°AC/DC≥70000H
AL-072-P200200W 355×332×332mm15800 lm≥0.95Single/RGBW≥705°-15°AC/DC≥70000H


narrow beam
CodePowerSize(H×W×L)Luminous FluxPFCCTCRIBeam AngleInputService Life
AL-054-P120120W 355×332×332mm8520 lm≥0.95Single/RGBW≥7025°-45°AC/DC≥70000H
AL-072-P150150W 355×332×332mm10650 lm≥0.95Single/RGBW≥7025°-45°AC/DC≥70000H
AL-072-P200200W 355×332×332mm14200 lm≥0.95Single/RGBW≥7025°-45°AC/DC≥70000H


wide beam
CodePowerSize(H×W×L)Luminous FluxPFCCTCRIBeam AngleInputService Life
AL-054-P120120W 355×332×332mm7560 lm≥0.95Single/RGBW≥7050°-60°AC/DC≥70000H
AL-072-P150150W 355×332×332mm9450 lm≥0.95Single/RGBW≥7050°-60°AC/DC≥70000H
AL-072-P200200W 355×332×332mm12600 lm≥0.95Single/RGBW≥7050°-60°AC/DC≥70000H


BEAM ANGLE
