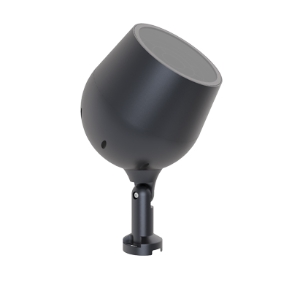

Focus-L

DESCRIPTION

High pressure die casting aluminum

Silicone gasket

Polyester powder coating, any colour available

High efficient integrated heat radiation design



MAIN CHARACTERISTICS LUMINARIE

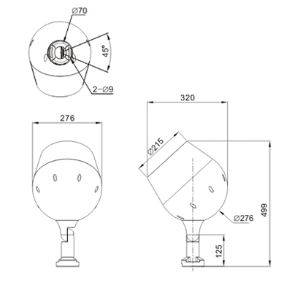

Size:                             499×320×276mm

Power:                          60W-100W

Finishing:                     Standard color,other colors upon request

Impact Resistance:      IK08

Electrical Class:          Class II

Input Voltage:             90-305V

Power Factor:             ≥0.95

Protection Class:        IP67




●  The overall structural parts are made of die-cast aluminum alloy, which has high strength, safety and reliability. The transparent cover adopts high light transmittance toughened glass
●  Light source modular design, chips quantity from 18 to 36, using OSRAM chips, single and RGBW program options, accorrding to customer requirements for a high degree of customization.
●  The light angle is from 5 degrees to 60 degrees, with a hood design, glare control design
●  The entire lamp power is up to 100W, and the aluminum alloy radiator with high thermal conductivity is built in.


very narrow beam
CodePowerSize(H×W×L)Luminous FluxPFCCTCRIBeam AngleInputService Life
FL-024-P6060W499×320×276mm4740 lm≥0.95Single/RGBW≥803.5°-15°AC/DC≥70000H
FL-036-P8080W499×320×276mm6320 lm≥0.95Single/RGBW≥805°-15°AC/DC≥70000H
FL-036-P100100W499×320×276mm7890 lm≥0.95Single/RGBW≥805°-15°AC/DC≥70000H


narrow beam
CodePowerSize(H×W×L)Luminous FluxPFCCTCRIBeam AngleInputService Life
FL-024-P6060W499×320×276mm4260 lm≥0.95Single/RGBW≥8025°-45°AC/DC≥70000H
FL-036-P8080W499×320×276mm5680 lm≥0.95Single/RGBW≥8025°-45°AC/DC≥70000H
FL-036-P100100W499×320×276mm7080 lm≥0.95Single/RGBW≥8025°-45°AC/DC≥70000H


wide beam
CodePowerSize(H×W×L)Luminous FluxPFCCTCRIBeam AngleInputService Life
FL-024-P6060W499×320×276mm3780 lm≥0.95Single/RGBW≥8050°-60°AC/DC≥70000H
FL-036-P8080W499×320×276mm5040 lm≥0.95Single/RGBW≥8050°-60°AC/DC≥70000H
FL-036-P100100W499×320×276mm6280 lm≥0.95Single/RGBW≥8050°-60°AC/DC≥70000H

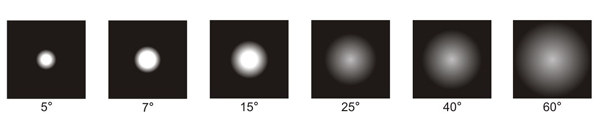

BEAM ANGLE
