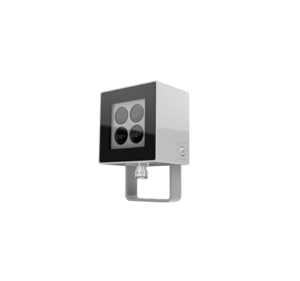

Magical Real S

DESCRIPTION

High pressure die casting aluminum

Silicone gasket

Polyester powder coating, any colour available

High efficient integrated heat radiation design


MAIN CHARACTERISTICS LUMINARIE

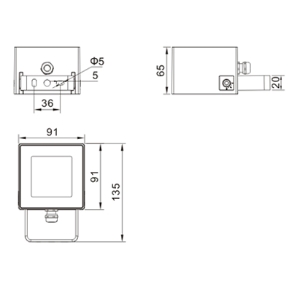

Size:                             91×103×135mm

Power:                          3W-9W

Finishing:                     Standard color,other colors upon request

Impact Resistance:      IK08

Electrical Class:          Class II

Input Voltage:             90-305V

Power Factor:             ≥0.95

Protection Class:        IP66



●  Reinforced die-casting body and reflector, smooth self-cleaning surface, nice appearance design And strong structure design.
●  High efficient integrated heat radiation design,Electrostatic powder painting, high strength anti-corrosion, long lifespan.
●  Plug type waterproof design, Waterproof more durable and effectively, Up to IP66.
●  3.5° Optical narrow angle design, Max 30 meters with center luminance 50lux.
● Power supply and signal terminal surge protection and power supply high voltage, wide voltage input design up to 305 v, can adapt to the harsh power supply environment.


very narrow beam
CodePowerSize(H×W×L)Luminous FluxPFCCTCRIBeam AngleInputService Life
MR-001-P033W91×103×135mm215 lm≥0.95Single/RGBW≥803.5°-15°AC/DC≥70000H
MR-003-P066W91×103×135mm474 lm≥0.95Single/RGBW≥805°-15°AC/DC≥70000H
MR-004-P109W91×103×135mm711 lm≥0.95Single/RGBW≥805°-15°AC/DC≥70000H


narrow beam
CodePowerSize(H×W×L)Luminous FluxPFCCTCRIBeam AngleInputService Life
MR-001-P033W91×103×135mm201 lm≥0.95Single/RGBW≥8025°-45°AC/DC≥70000H
MR-003-P066W91×103×135mm426 lm≥0.95Single/RGBW≥8025°-45°AC/DC≥70000H
MR-004-P109W 91×103×135mm639 lm≥0.95Single/RGBW≥8025°-45°AC/DC≥70000H


wide beam
CodePowerSize(H×W×L)Luminous FluxPFCCTCRIBeam AngleInputService Life
MR-001-P033W91×103×135mm179 lm≥0.95Single/RGBW≥8050°-60°AC/DC≥70000H
MR-003-P066W91×103×135mm378 lm≥0.95Single/RGBW≥8050°-60°AC/DC≥70000H
MR-004-P109W91×103×135mm567 lm≥0.95Single/RGBW≥8050°-60°AC/DC≥70000H

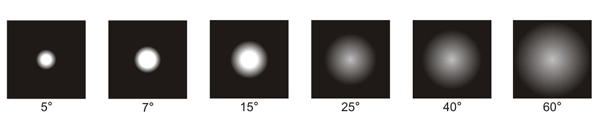

BEAM ANGLE
