● Reinforced die-casting body and reflector, smooth self-cleaning surface, nice appearance design And strong structure design.
● High efficient integrated heat radiation design,Electrostatic powder painting, high strength anti-corrosion, long lifespan.
● Plug type waterproof design, Waterproof more durable and effectively, Up to IP66.
● 3.5° Optical narrow angle design, Max 30 meters with center luminance 50lux.
● Power supply and signal terminal surge protection and power supply high voltage, wide voltage input design up to 305 v, can adapt to the harsh power supply environment.
very narrow beam |
Code | Power | Size(H×W×L) | Luminous Flux | PF | CCT | CRI | Beam Angle | Input | Service Life |
MR-001R-P03 | 3W | 91×103×135mm | 215 lm | ≥0.95 | Single/RGBW | ≥80 | 3.5°-15° | AC/DC | ≥70000H |
MR-003R-P06 | 6W | 91×103×135mm | 474 lm | ≥0.95 | Single/RGBW | ≥80 | 5°-15° | AC/DC | ≥70000H |
MR-004R-P10 | 9W | 91×103×135mm | 711 lm | ≥0.95 | Single/RGBW | ≥80 | 5°-15° | AC/DC | ≥70000H |
narrow beam |
Code | Power | Size(H×W×L) | Luminous Flux | PF | CCT | CRI | Beam Angle | Input | Service Life |
MR-001R-P03 | 3W | 91×103×135mm | 201 lm | ≥0.95 | Single/RGBW | ≥80 | 25°-45° | AC/DC | ≥70000H |
MR-003R-P06 | 6W | 91×103×135mm | 426 lm | ≥0.95 | Single/RGBW | ≥80 | 25°-45° | AC/DC | ≥70000H |
MR-004R-P10 | 9W | 91×103×135mm | 639 lm | ≥0.95 | Single/RGBW | ≥80 | 25°-45° | AC/DC | ≥70000H |
wide beam |
Code | Power | Size(H×W×L) | Luminous Flux | PF | CCT | CRI | Beam Angle | Input | Service Life |
MR-001R-P03 | 3W | 91×103×135mm | 179 lm | ≥0.95 | Single/RGBW | ≥80 | 50°-60° | AC/DC | ≥70000H |
MR-003R-P06 | 6W | 91×103×135mm | 378 lm | ≥0.95 | Single/RGBW | ≥80 | 50°-60° | AC/DC | ≥70000H |
MR-004R-P10 | 9W | 91×103×135mm | 567 lm | ≥0.95 | Single/RGBW | ≥80 | 50°-60° | AC/DC | ≥70000H |

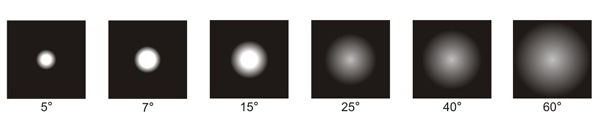

BEAM ANGLE
