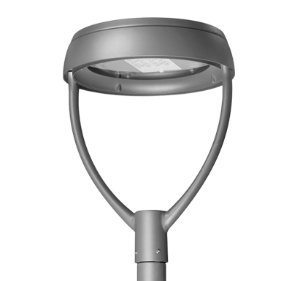

Pansy-C

DESCRIPTION

High pressure die casting aluminum

Silicone gasket

Polyester powder coating, any colour available

High efficient integrated heat radiation design



MAIN CHARACTERISTICS LUMINARIE

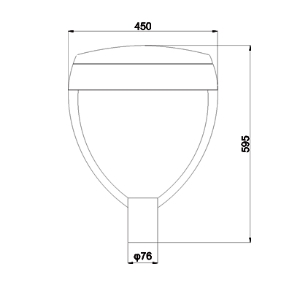

Size:                             595×450×450mm

Power:                          35W-100W

Finishing:                     Standard color,other colors upon request

Impact Resistance:      IK08

Electrical Class:          Class II

Input Voltage:             90-305V

Power Factor:             ≥0.95

Protection Class:        IP65




●  Streamline design aesthetics, Self-cleaning, no dust, avoid the secondary pollution in cities.
●  High efficient integrated heat radiation design,Electrostatic powder painting, high strength anti-corrosion, long lifespan.
●  Die-casting aluminium lamp housing, using LED light source.
●  Installed on the lamp pole with a diameter of 60mm.
●  Combined optical lens, a wide variety of optics feature apply to kinds of road lighting requirements.
●  High visual comfort.
●  All external screws are made of stainless steel.

Pansy-C
CodePowerSize(H×W×L)EfficiencyPFCCTCRIInstallation PipeInputService Life
SP-024C-P3535W  595×450×450mm≥100LM≥0.952700K-6500K≥70φ48/φ60AC 90V-305V≥70000H
SP-032C-P6060W  595×450×450mm≥100LM≥0.952700K-6500K≥70φ48/φ60AC 90V-305V≥70000H
SP-048C-P100100W  595×450×450mm≥100LM≥0.952700K-6500K≥70φ48/φ60AC 90V-305V≥70000H

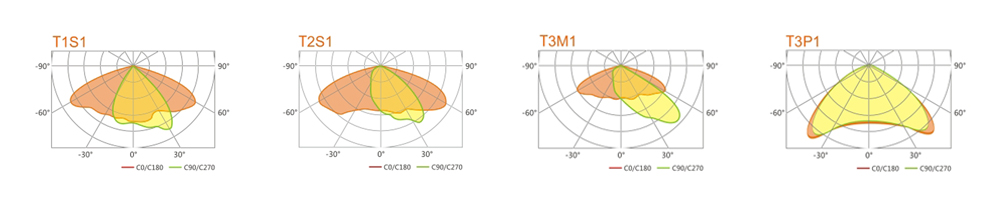

BEAM ANGLE
