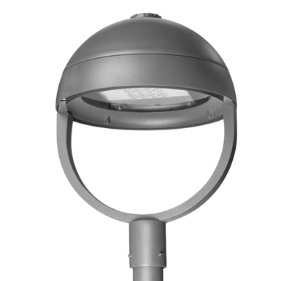

Pansy-B

DESCRIPTION

High pressure die casting aluminum

Silicone gasket

Polyester powder coating, any colour available

High efficient integrated heat radiation design



MAIN CHARACTERISTICS LUMINARIE

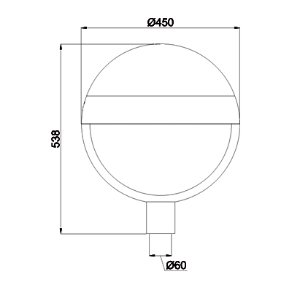

Size:                           538×450×450mm

Power:                          35W-100W

Finishing:                     Standard color,other colors upon request

Impact Resistance:      IK08

Electrical Class:          Class II

Input Voltage:             90-305V

Power Factor:             ≥0.95

Protection Class:        IP65




●  The overall structural parts are made of die-cast aluminum alloy, which has high strength, safety and reliability. The transparent cover adopts high light transmittance toughened glass
●  Light source modular design, chips quantity from 18 to 36, using OSRAM chips, single and RGBW program options, accorrding to customer requirements for a high degree of customization.
●  The light angle is from 5 degrees to 60 degrees, with a hood design, glare control design
●  The entire lamp power is up to 100W, and the aluminum alloy radiator with high thermal conductivity is built in.

Pansy-B
CodePowerSize(H×W×L)EfficiencyPFCCTCRIInstallation PipeInputService Life
SP-024B-P3535W538×450×450mm≥100LM≥0.952700K-6500K≥70φ76/φ60AC 90V-305V≥70000H
SP-032B-P6060W538×450×450mm≥100LM≥0.952700K-6500K≥70φ76/φ60AC 90V-305V≥70000H
SP-048B-P100100W538×450×450mm≥100LM≥0.952700K-6500K≥70φ76/φ60AC 90V-305V≥70000H


BEAM ANGLE
