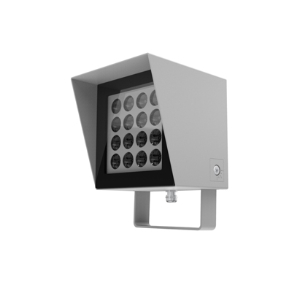

Magical Real BR

DESCRIPTION

High pressure die casting aluminum

Silicone gasket

Polyester powder coating, any colour available

High efficient integrated heat radiation design



MAIN CHARACTERISTICS LUMINARIE

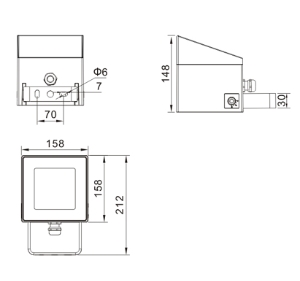

Size:                             148×158×212mm

Power:                          9W-36W

Finishing:                     Standard color,other colors upon request

Impact Resistance:      IK08

Electrical Class:          Class II

Input Voltage:             90-305V

Power Factor:             ≥0.95

Protection Class:        IP66




●  Reinforced die-casting body and reflector, smooth self-cleaning surface, nice appearance design And strong structure design.
●  High efficient integrated heat radiation design,Electrostatic powder painting, high strength anti-corrosion, long lifespan.
●  Plug type waterproof design, Waterproof more durable and effectively, Up to IP66.
●  3.5° Optical narrow angle design, Max.80meters with center luminance 50lux.
● Power supply and signal terminal surge protection and power supply high voltage, wide voltage input design up to 305 v, can adapt to the harsh power supply environment.

very narrow beam
CodePowerSize(H×W×L)Luminous FluxPFCCTCRIBeam AngleInputService Life
MR-009R-P2020W148×158×212mm1580 lm≥0.95Single/RGBW≥803.5°-15°AC/DC≥70000H
MR-012R-P2426W 148×158×212mm2054 lm≥0.95Single/RGBW≥805°-15°AC/DC≥70000H
MR-016R-P3636W148×158×212mm2844 lm≥0.95Single/RGBW≥805°-15°AC/DC≥70000H



narrow beam
CodePowerSize(H×W×L)Luminous FluxPFCCTCRIBeam AngleInputService Life
MR-009R-P2020W148×158×212mm1410 lm≥0.95Single/RGBW≥8025°-45°AC/DC≥70000H
MR-012R-P2426W148×158×212mm1836 lm≥0.95Single/RGBW≥8025°-45°AC/DC≥70000H
MR-016R-P3636W148×158×212mm2546 lm≥0.95Single/RGBW≥8025°-45°AC/DC≥70000H


wide beam
CodePowerSize(H×W×L)Luminous FluxPFCCTCRIBeam AngleInputService Life
MR-009R-P2020W148×158×212mm1260 lm≥0.95Single/RGBW≥8050°-60°AC/DC≥70000H
MR-012R-P2426W148×158×212mm1638 lm≥0.95Single/RGBW≥8050°-60°AC/DC≥70000H
MR-016R-P3636W148×158×212mm2268 lm≥0.95Single/RGBW≥8050°-60°AC/DC≥70000H

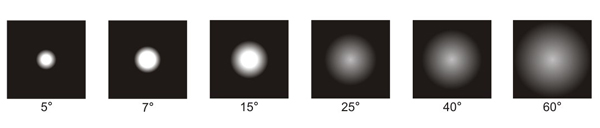

BEAM ANGLE
