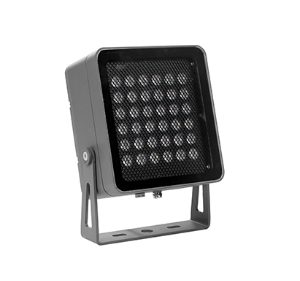

Rainbow

DESCRIPTION

High pressure die casting aluminum

Silicone gasket

Polyester powder coating, any colour available

High efficient integrated heat radiation design



MAIN CHARACTERISTICS LUMINARIE

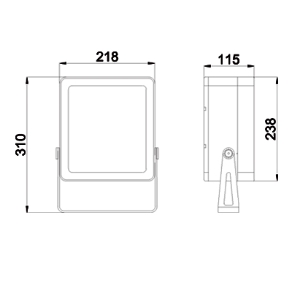

Size:                             310×238×218mm

Power:                          60-100W

Finishing:                     Standard color,other colors upon request

Impact Resistance:      IK08

Electrical Class:          Class II

Input Voltage:             90-305V

Power Factor:             ≥0.95

Protection Class:        IP66




●  Reinforced die-casting body and reflector, smooth self-cleaning surface, nice appearance design And strong structure design.
●  High efficient integrated heat radiation design,Electrostatic powder painting, high strength anti-corrosion, long lifespan.
●  Plug type waterproof design, Waterproof more durable and effectively, Up to IP66.
●  3.5° Optical narrow angle design, Max.150meters with center luminance 50lux.
● Power supply and signal terminal surge protection and power supply high voltage, wide voltage input design up to 305 v, can adapt to the harsh power supply environment.



very narrow beam
CodePowerSize(H×W×L)Luminous FluxPFCCTCRIBeam AngleInputService Life
MA-024-P6060W310×238×218mm4740 lm≥0.95Single/RGBW≥703.5°-15°AC/DC≥70000H
MA-036-P8080W310×238×218mm6320 lm≥0.95Single/RGBW≥705°-15°AC/DC≥70000H
MA-048-P100100W310×238×218mm7900 lm≥0.95Single/RGBW≥705°-15°AC/DC≥70000H



narrow beam
CodePowerSize(H×W×L)Luminous FluxPFCCTCRIBeam AngleInputService Life
MA-024-P6060W310×238×218mm4260 lm≥0.95Single/RGBW≥7025°-45°AC/DC≥70000H
MA-036-P8080W310×238×218mm5680 lm≥0.95Single/RGBW≥7025°-45°AC/DC≥70000H
MA-048-P100100W310×238×218mm7100 lm≥0.95Single/RGBW≥7025°-45°AC/DC≥70000H


wide beam
CodePowerSize(H×W×L)Luminous FluxPFCCTCRIBeam AngleInputService Life
MA-024-P6060W310×238×218mm3780 lm≥0.95Single/RGBW≥7050°-60°AC/DC≥70000H
MA-036-P8080W310×238×218mm5040 lm≥0.95Single/RGBW≥7050°-60°AC/DC≥70000H
MA-048-P100100W310×238×218mm6300 lm≥0.95Single/RGBW≥7050°-60°AC/DC≥70000H

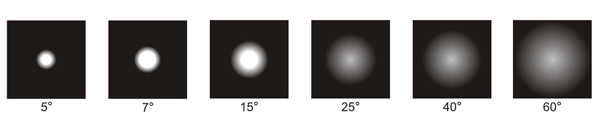

BEAM ANGLE
