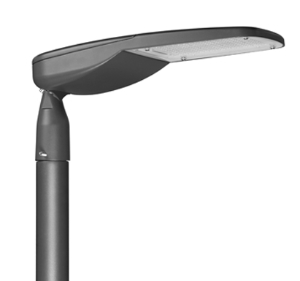

Bravo

DESCRIPTION

High pressure die casting aluminum

Extruded silicone gasket

Polyester powder coating, any colour available

High efficient integrated heat radiation design



MAIN CHARACTERISTICS LUMINARIE

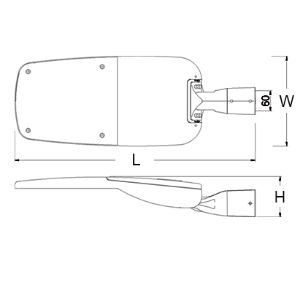

 Size:                             600×210×109mm / 705×265×119mm / 880×352×140mm

Power:                          30W-200W

Connection(spigot):     48mm/60mm,0-90 dregee adjustable system

Finishing:                     Standard color,other colors upon request

Impact Resistance:      IK08

Electrical Class:          Class II

Input Voltage:             90-305V

Power Factor:             ≥0.95

Protection Class:        IP66




●  Streamline design aesthetics, Self-cleaning, no dust, avoid the secondary pollution in cities.
●  High efficient integrated heat radiation design,Electrostatic powder painting, high strength anti-corrosion, long lifespan.
●  Lamp adjustable angle design, Tilt angle is 0°to 15°for vertical installation, and -10°to +15° for Horizontal installation.
●  Power-off protection socket design, safe and reliable.
●  Combined optical lens, a wide variety of optics feature apply to kinds of road lighting requirements.
●  Plug connector operation for drive replace and easy maintenance.



Small size
CodePowerSize(H×W×L)EfficiencyPFCCTCRIBeam AngleInputService Life
BR-016-E3030W600×210×109mm≥120 LM/W≥0.952700K-6500K≥70T I/T II/T III/90°AC≥70000H
BR-024-E5050W600×210×109mm≥120 LM/W≥0.952700K-6500K≥70T I/T II/T III/90°AC≥70000H
BR-024-E6060W600×210×109mm≥120 LM/W≥0.952700K-6500K≥70T I/T II/T III/90°AC≥70000H



Middle size
CodePowerSize(H×W×L)EfficiencyPFCCTCRIBeam AngleInputService Life
BR-032-E8080W705×265×119mm≥120 LM/W≥0.952700K-6500K≥70T I/T II/T III/90°AC≥70000H
BR-048-E100100W705×265×119mm≥120 LM/W≥0.952700K-6500K≥70T I/T II/T III/90°AC≥70000H
BR-064-E120120W705×265×119mm≥120 LM/W≥0.952700K-6500K≥70T I/T II/T III/90°AC≥70000H



Big size
CodePowerSize(H×W×L)EfficiencyPFCCTCRIBeam AngleInputService Life
BR-072-E150150W880×352×140mm≥120 LM/W≥0.952700K-6500K≥70T I/T II/T III/90°AC≥70000H
BR-080-E180180W880×352×140mm≥120 LM/W≥0.952700K-6500K≥70T I/T II/T III/90°AC≥70000H
BR-096-E200200W880×352×140mm≥120 LM/W≥0.952700K-6500K≥70T I/T II/T III/90°AC≥70000H

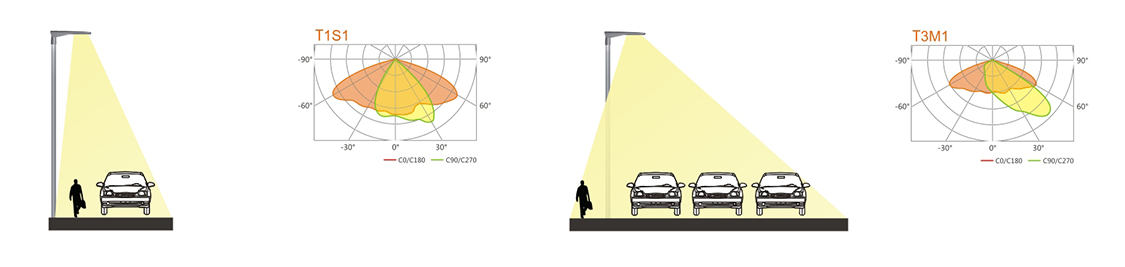

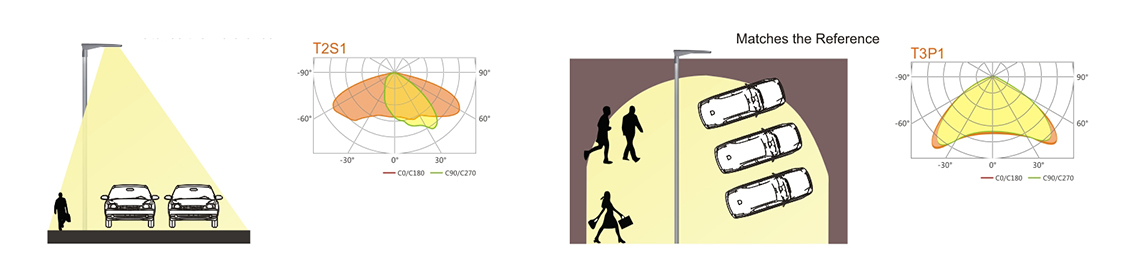

PHOTOMETRIC DISTRIBUTIONS
