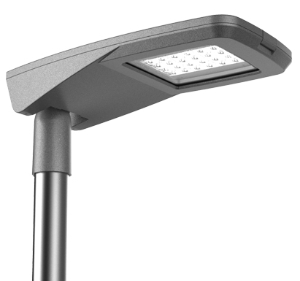

Apollo

DESCRIPTION

High pressure die casting aluminum

Extruded silicone gasket

Polyester powder coating, any colour available

High efficient integrated heat radiation design

MAIN CHARACTERISTICS LUMINARIE

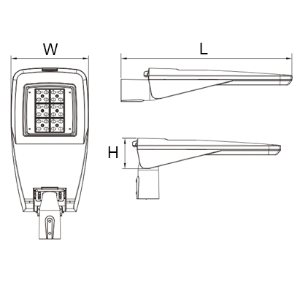

Size:                             595×270×106mm / 775×360×126mm

Power:                          20W-80W

Connection(spigot):      48mm/60mm,0-90 dregee adjustable system

Finishing:                     Standard color,other colors upon request

Impact Resistance:      IK08

Electrical Class:           Class II

Input Voltage:               90-305V

Power Factor:              ≥0.95

Protection Class:         IP66


●  Streamline design aesthetics, Self-cleaning, no dust, avoid the secondary pollution in cities.
●  High efficient integrated heat radiation design,Electrostatic powder painting, high strength anti-corrosion, long lifespan.
●  Lamp adjustable angle design, Tilt angle is 0°to 15°for vertical installation, and -10°to +15° for Horizontal installation.
●  Power-off protection socket design, safe and reliable.
●  Combined optical lens, a wide variety of optics feature apply to kinds of road lighting requirements.
●  Plug connector operation for drive replace and easy maintenance.
●  Non-clip open design to make easy operation and installation.


Small size
CodePowerSize(H×W×L)EfficiencyPFCCTCRIBeam AngleInputService Life
AP-016-P3535W595×270×106mm≥120 LM/W≥0.952700K-6500K≥70T I/T II/T III/90°AC≥70000H
AP-024-P6060W595×270×106mm≥120 LM/W≥0.952700K-6500K≥70T I/T II/T III/90°AC≥70000H
AP-036-P8080W595×270×106mm≥120 LM/W≥0.952700K-6500K≥70T I/T II/T III/90°AC≥70000H



Big size
CodePowerSize(L×W×H)EfficiencyPFCCTCRIBeam AngleInputService Life
AP-048-P100100W775×360×126mm≥120 LM/W≥0.952700K-6500K≥70T I/T II/T III/90°AC≥70000H
AP-064-P150150W775×360×126mm≥120 LM/W≥0.952700K-6500K≥70T I/T II/T III/90°AC≥70000H
AP-080-P180180W775×360×126mm≥120 LM/W≥0.952700K-6500K≥70T I/T II/T III/90°AC≥70000H

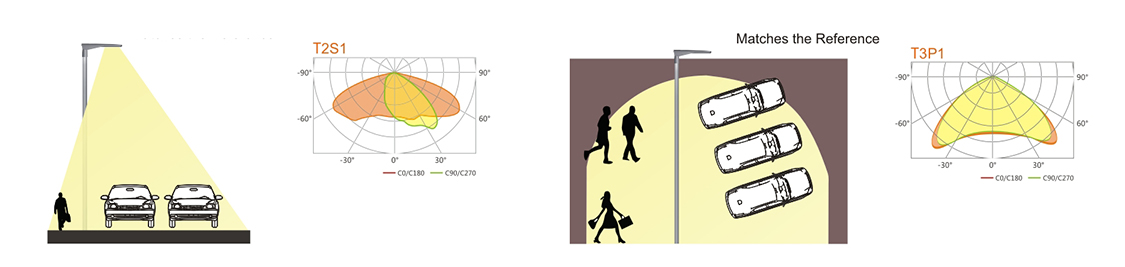

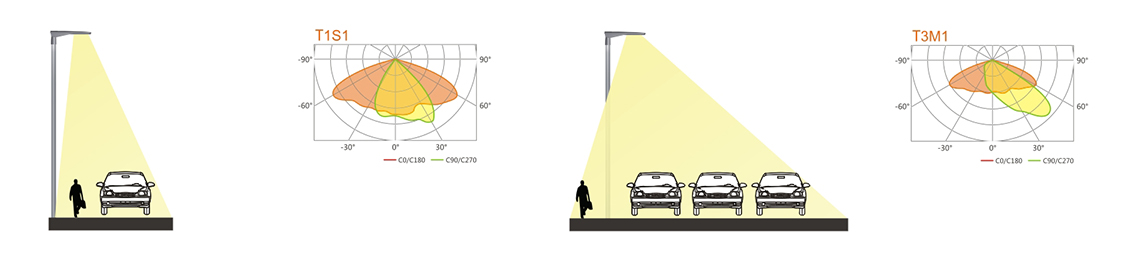

PHOTOMETRIC DISTRIBUTIONS



PRE:NO INFORMATION!
